Remote Sensing of Glaciers

Remote sensing techniques have become appealing in research on glaciers as they mitigate many of the logistical problems associated with making in situ measurements. They also provide a synoptic view and historical record that is desirable to improve our understanding of glaciers behaviour and evolution.

The School of Surveying is actively involved in remote sensing of glaciers with a specific focus on the largest glacier in New Zealand: Tasman glacier.

New Zealand glaciers

Tasman flow velocity

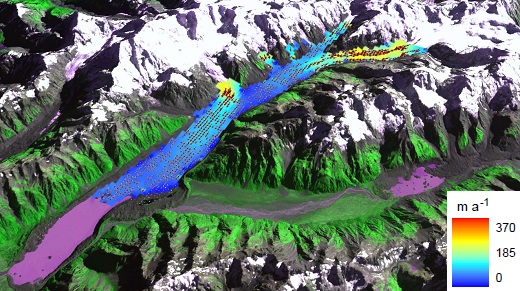

A decade long (2000–2011) record of flow velocities was derived for the Tasman Glacier from the Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) and Landsat 7 Enhanced Thematic Mapper Plus (ETM+) imagery (2000–2011). Flow-fields were derived from pairs of consecutive images using Correlation Image Analysis Software (CIAS). Repeat GPS measurements of markers installed on the glacier surface were used for optimisation of image matching and flow-field validation (Redpath, 2011; Redpath et al., 2013).

The results show two major units of flow, with an apparent disconnection between the upper Tasman and Hochstetter Glaciers. Furthermore, the high temporal resolution velocity record revealed marked oscillations between significant acceleration and deceleration of the glaciers surface flow. Analysis of climatic data suggests that observed velocity changes may be driven by climatic and hydrological forcing.

Growth of proglacial lakes

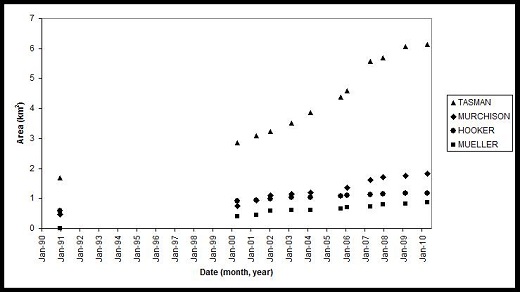

Debris-covered valley glaciers of the central Southern Alps, New Zealand, are undergoing rapid retreat following at least two centuries of near standstill. The current phase of rapid retreat is associated with the formation of large proglacial lakes at the glacier margins in recent decades. The historic record of the Tasman, Hooker, Mueller and Murchison glaciers was examined using Landsat and ASTER imagery to find the context for this current phase of rapid retreat. Examination of a twenty year sequence of remotely sensed imagery reveals the temporal and spatial patterns of glacier retreat.

Collaborations

• Research on New Zealand glaciers is undertaken closely with the Geography Department (www.geography.otago.ac.nz).
• The CIAS software was kindly provided by Prof. Andreas Käab (University of Oslo)

Funding

• Performance Based Research Funding (PBRF) grant from the School of Suveying.

• Active Earth Processes Otago research Theme

Kilimanjaro

The mapping reloaded

The glaciers of Kilimanjaro/Kibo have attracted interest for over a century. Since their first description following the ascent by Meyer (1889), their dramatic retreat has been characterized by numerous studies. While in situ observation and ground mapping have been originally used to map ice bodies over Kibo, remote sensing techniques via aerial photography/photogrammetry and satellite imagery have become the method of choice to update the glacier boundaries assessed by Meyer.

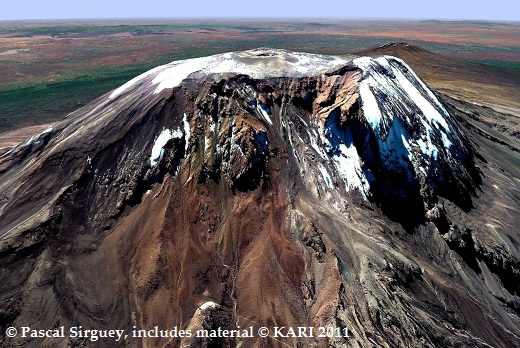

Images from Landsat, Quickbird, ASTER, and Kompsat satellites have been used to map of the dramatic retreat of glaciers on Kibo (Cullen et al. 2013). Check out the map and animation below that illustrate this retreat.

Download an interactive PDF animation of the glacier retreat on Kilimanjaro

Glacier albedo

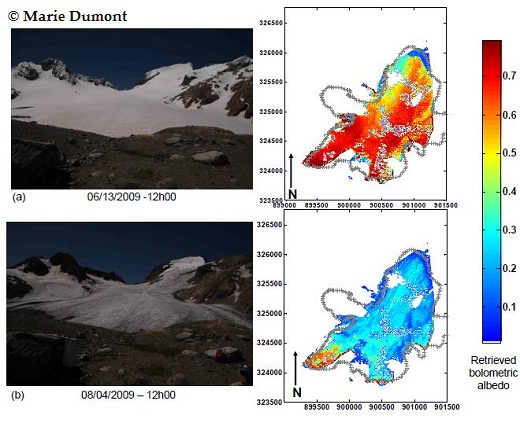

Defined as the reflected fraction of incident radiation over the whole solar spectrum, the surface broadband albedo is one of the most important variable in a glacier's mass balance. This study presents a new method to retrieve the albedo of frozen surfaces from terrestrial photography at visible and near infrared wavelengths (Dumont et al., 2011). This method accounts for the anisotropic reflectance of snow and ice surfaces and uses a radiative transfer model for narrow-to-broadband conversion. The accuracy of the method was assessed using concomitant measurements of albedo during the summers 2008 and 2009 on Saint Sorlin Glacier (Grandes Rousses, France). Albedo retrieval has then been conducted from MODIS data and related to glacier mass balance (Dumont et al., 2012). Other parameters of the snowpack such as Snow Specific Surface Area (SSA) have can also be retrieved (Mary et al., 2013).

Collaborations

• Laboratory of Glaciology and Geophysics of the Environment (LGGE, Grenoble, France, lgge.osug.fr)
• Météo France (CNRM-CEN, Grenoble, France, www.cnrm-game.fr)

Resources and links

• Global Land Ice Measurement from Space (GLIMS, www.glims.org)
• Glacier research at Otago (glaciers.otago.ac.nz)
• Polar Environment Research Theme (polarresearch.otago.ac.nz)
• Snow and Ice Research Group (SIRG) (www.sirg.org.nz)

Selected publications and outcomes

Sirguey, P. & Cullen, N. J. (2013), 'KILISoSDEM2012: a very high resolution DEM of Kilimanjaro', Survey Quarterly 76, 5-7 (plus cover).

Mary, A.; Dumont, M.; Dedieu, J.-P.; Durand, Y.; Sirguey, P.; Milhem, H.; Mestre, O.; Negi, H. S.; Kokhanovsky, A. A.; Lafaysse, M. & Morin, S. (2013), 'Intercomparison of retrieval algorithms for the specific surface area of snow from near-infrared satellite data in mountainous terrain, and comparison with the output of a semi-distributed snowpack model', The Cryosphere. 7(2), 741-761.

Cullen, N. J.; Sirguey, P.; Mölg, T.; Kaser, G.; Winkler, M. & Fitzsimons, S. J. (2013), 'A century of ice retreat on Kilimanjaro: the mapping reloaded', The Cryosphere 7(2), 419-431.

Dumont, M.; Gardelle, J.; Sirguey, P.; Guillot, A.; Six, D.; Rabatel, A. & Arnaud, Y. (2012), 'Linking glacier annual mass balance and glacier albedo retrieved from MODIS data', The Cryosphere 6(6), 1527-1539.

Redpath, T. A. N.; Sirguey, P.; Fitzsimons, S. J. & Kääb, A. (2013) 'Accuracy assessment for mapping glacier flow velocity and detecting flow dynamics from ASTER satellite imagery: Tasman Glacier, New Zealand' Remote Sensing of Environment 133, 90-101.[PDF of Uncorrected Proof, 1.8MB]

Redpath, T.; Fitzsimons, S.; Sirguey, P. & Kääb, A. (2011), 'Exploring the dynamic behaviour of the surface flow of Tasman Glacier.' in 'Proceedings of the International Union of Geodesy and Geophysics (IUGG) General Assembly', 28th June-7th July 2011, Melbourne, Australia.

Redpath, T. (2011), 'Utilising optical satellite imagery to derive multi-temporal flow-fields for the Tasman Glacier, New Zealand.' MSc Thesis, University of Otago.

Dumont, M.; Sirguey, P.; Arnaud, Y. & Six, D. (2011), 'Monitoring spatial and temporal variations of surface albedo on Saint Sorlin Glacier (French Alps) using terrestrial photography', The Cryosphere 5, 759-771.

Sirguey, P. (2009), 'Simple correction of multiple reflection effects in rugged terrain', International Journal of Remote Sensing 30(4), 1075-1081.

Lopez, P.; Sirguey, P.; Arnaud, Y.; Pouyaud, B. & Chevallier, P. (2008), 'Snow cover monitoring in the Northern Patagonia Icefield using MODIS satellite images (2000-2006)', Global and Planetary Change 61(3-4), 103-116.

Strong, D. (2008), 'Patterns and processes of ice loss at Tasman Glacier: an evaluation using historic data sources and remotely sensed imagery.' MSc Thesis, University of Otago.

Allen, S.; Owens, I. & Sirguey, P. (2008), 'Satellite remote sensing procedures for glacial terrain analyses and hazard assessment in the Aoraki Mount Cook region, New Zealand', New Zealand Journal of Geology and Geophysics 51(1), 73-87.
